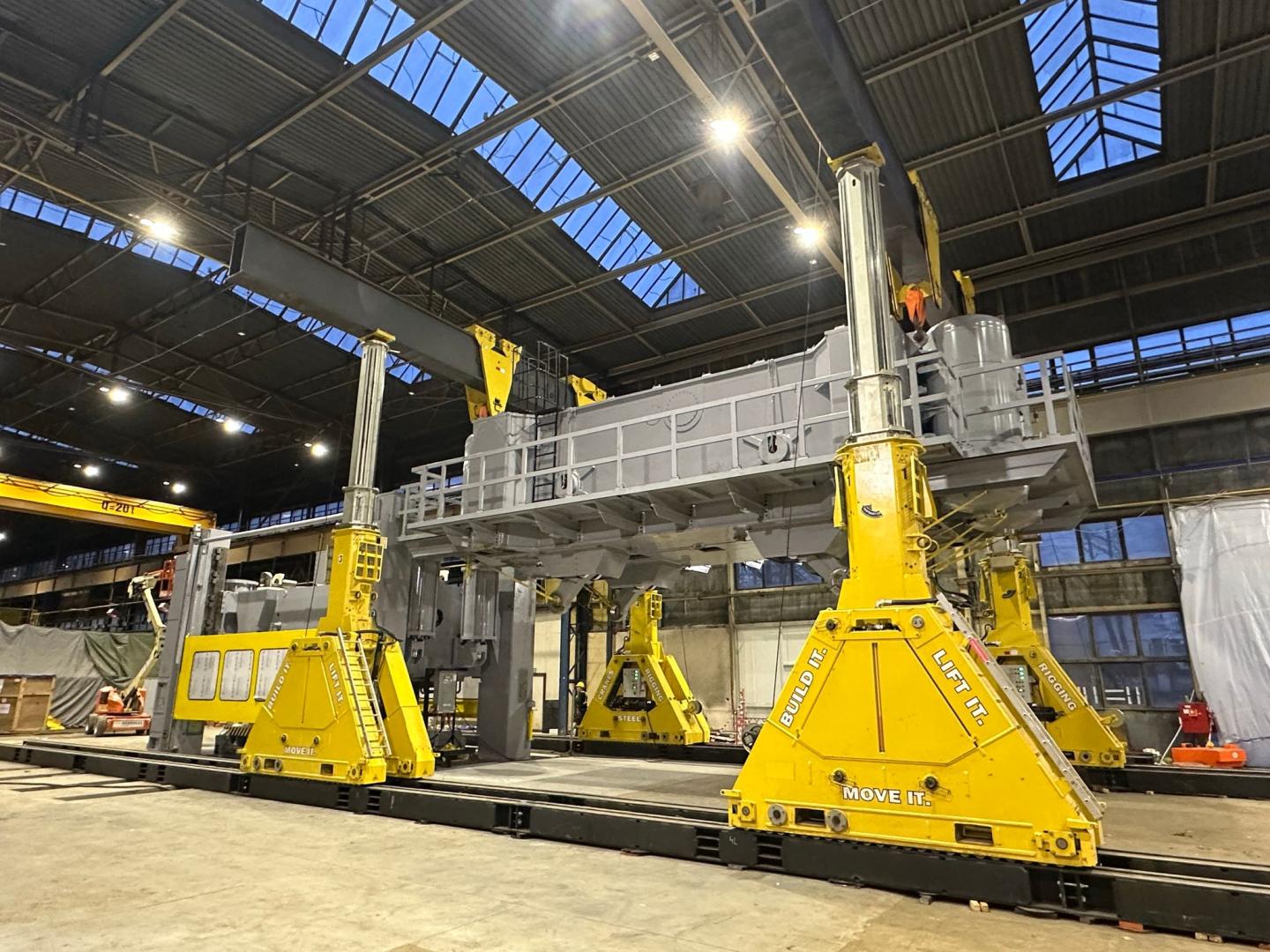

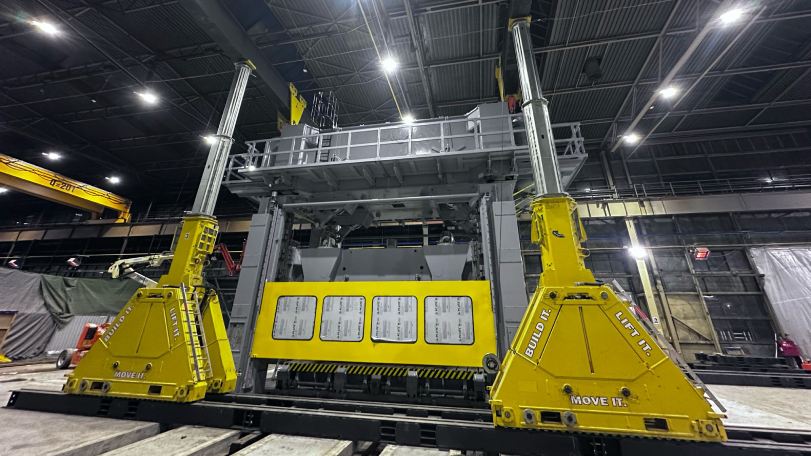

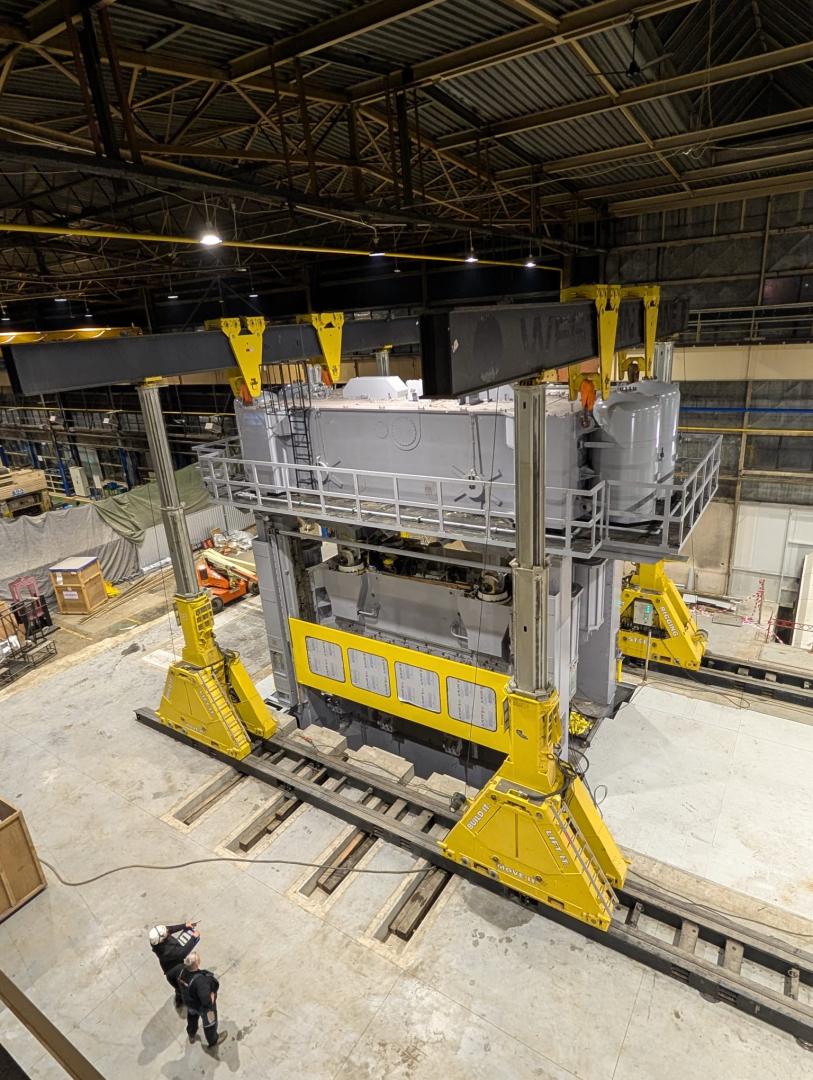

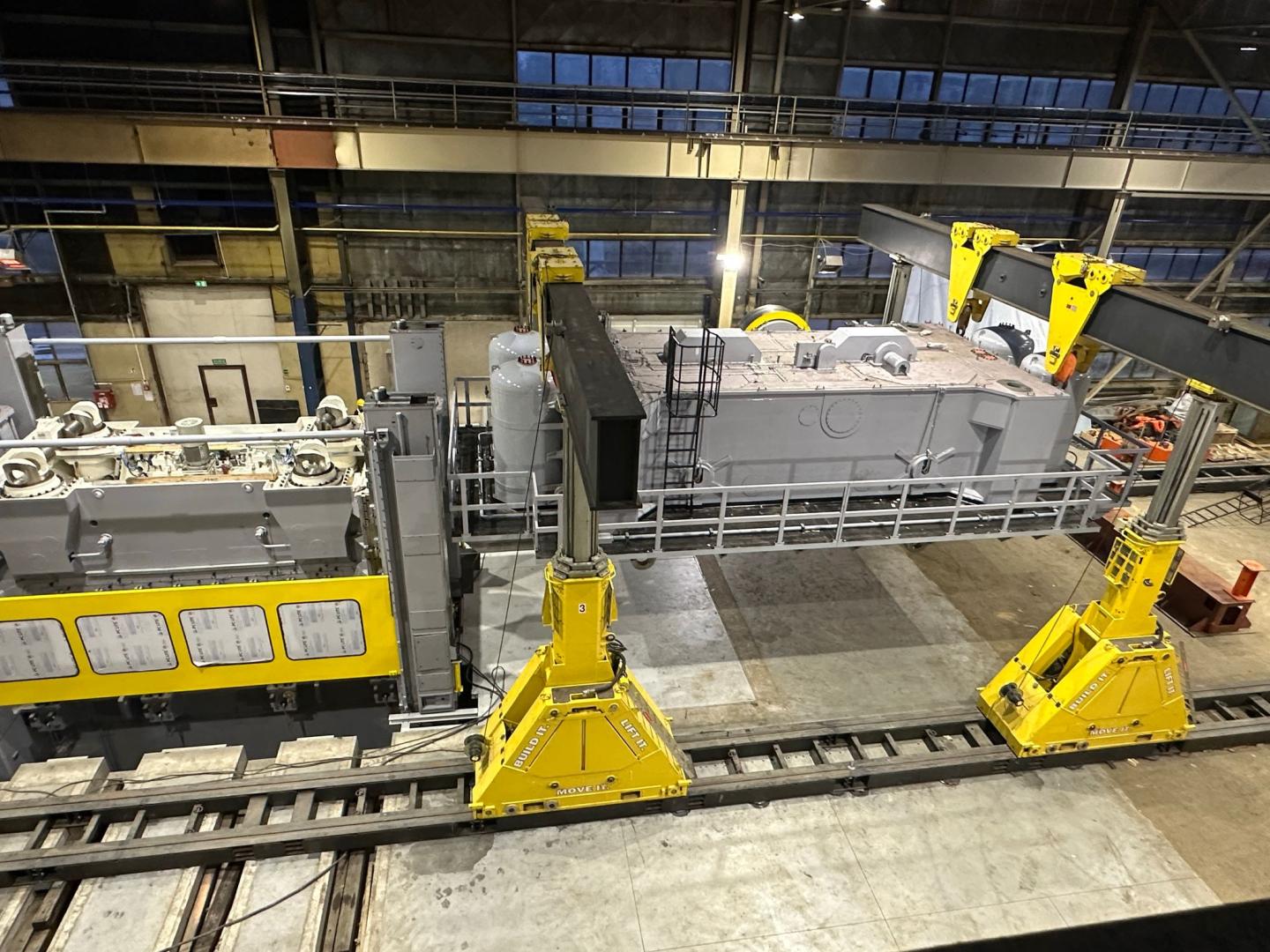

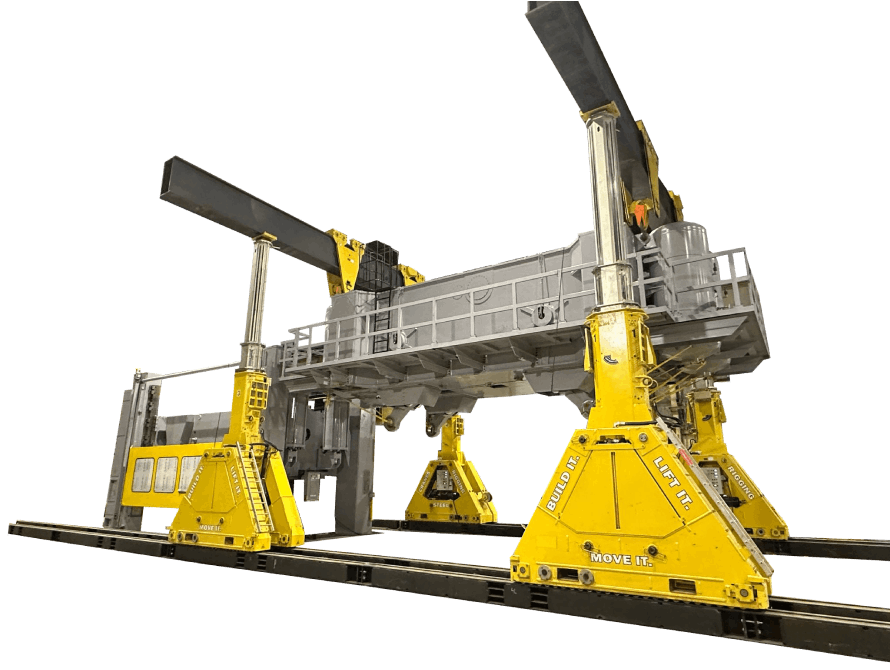

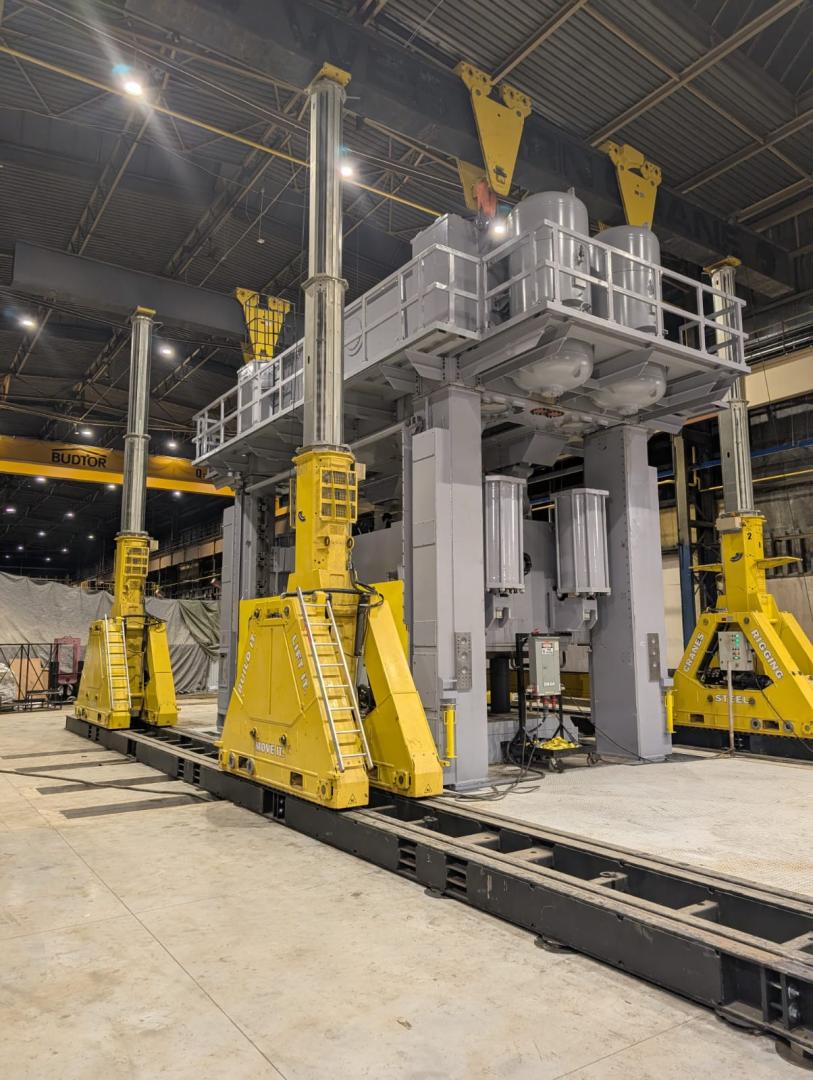

Enerpac SBL 1100 hydraulic gantry
Select your language
Enerpac SBL 1100 hydraulic gantry
|
Maximum lifting capacity: |
up to 1,180 tons (using 4 towers) |
|
Minimum height: |
4.37 m |
|
Maximum height: |
12.00 m |
| Width: | ~169.5" (approx. 4.3 m) |
| Height: | ~108.7" (approx. 2.76 m) |
| Control system: |
Operated either wirelessly or via cable through the Intelli-Lift system (2.4 GHz / RS-485), which provides automatic real-time synchronization of height and position across all towers. |
|
Power supply: |
The control unit operates on 380–400 VAC (50 Hz) or 460–480 VAC (60 Hz). The hydraulic power system uses variable displacement pumps, allowing independent control of lifting and lowering speeds for each tower. |
